Plot scatterer geometry, stored model results, or stored TMM scattering views

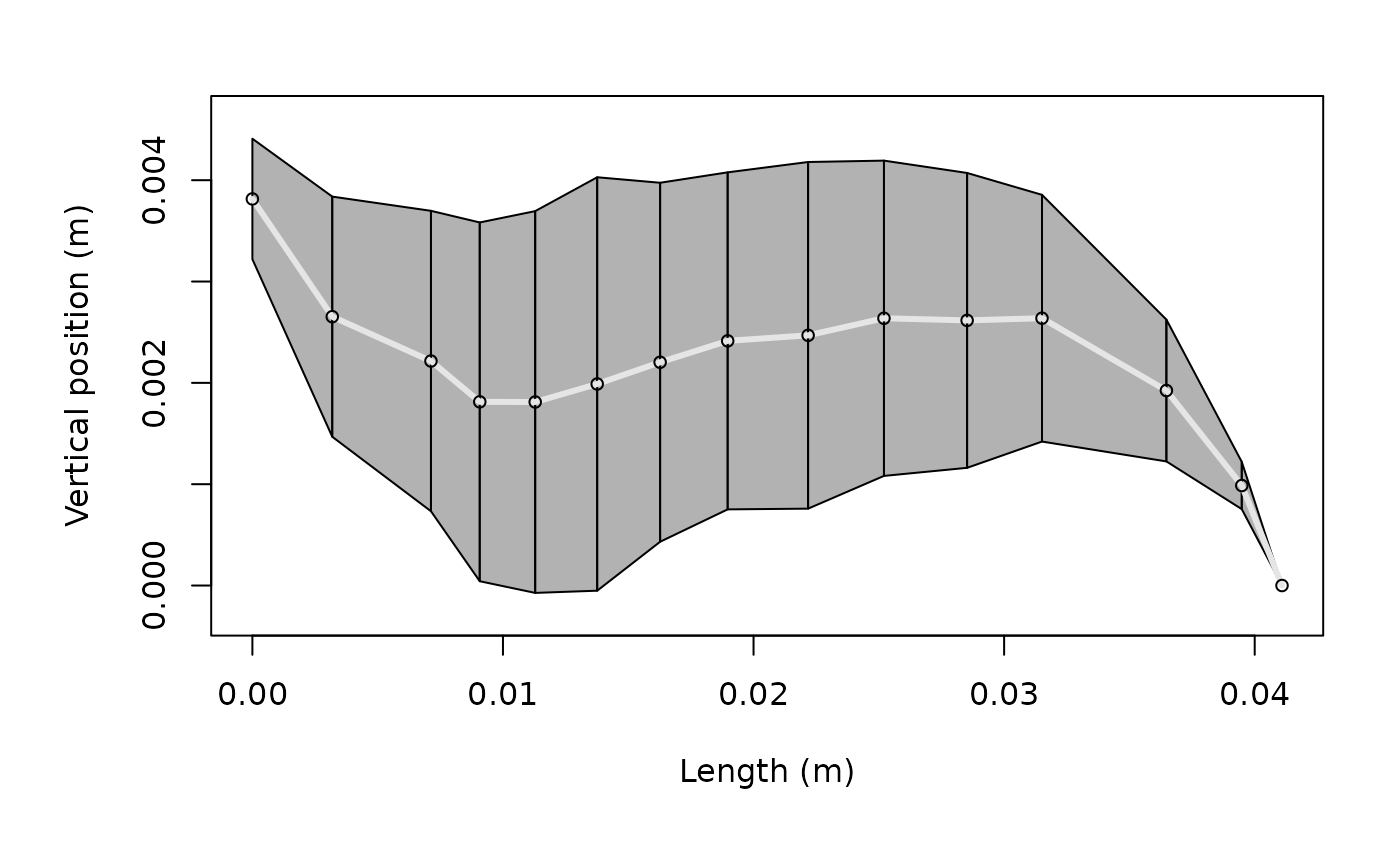

S3 plotting method for Scatterer objects. Depending on type, the method draws the target geometry, one or more stored model curves, or a stored single-target TMM scattering slice / map when the object was computed with retained T-matrix state.

Usage

# S3 method for class 'Scatterer'
plot(
  x,
  y = NULL,
  type = "shape",
  nudge_y = 1.1,
  nudge_x = 1.05,
  aspect_ratio = "manual",
  x_units = "frequency",
  y_units = "TS",
  ...
)

Arguments

x

Scatterer-class object.

y

Ignored (required for the base plot() method signature).

type

Plot mode. Use "shape" for the stored geometry, "model" for the currently stored model output, or "scattering" for stored TMM angular products.

nudge_y

Multiplicative vertical padding applied to automatically derived y-axis limits.

nudge_x

Multiplicative horizontal padding applied to automatically derived x-axis limits.

aspect_ratio

Aspect-ratio control for supported shape plots. Use "manual" to honor nudge_x / nudge_y, or "auto" to let the plotting helper derive the aspect ratio directly.

x_units

Horizontal-axis convention for type = "model". Supported values depend on the stored model family and typically include "frequency" and geometry-scaled wavenumber variants such as "ka".

y_units

Stored response quantity for type = "model" or type = "scattering". Typical values include "TS" and "sigma_bs".

...

Additional arguments passed through to the class-specific plotting helpers. For stored TMM scattering plots, this includes controls such as frequency, vary, polar, and heatmap.

Value

Called for its side effect of drawing a plot; returns the input invisibly.

Details

This method dispatches to the relevant scatterer-class plotting helper: cal_plot(), ess_plot(), sbf_plot(), bbf_plot(), fls_plot(), or gas_plot(). The supported type values therefore depend on what has been stored on the object. For example, type = "model" requires the object to already contain model output, and type = "scattering" currently applies only to stored TMM results.

See also

extract(), target_strength(), tmm_scattering(), tmm_scattering_grid()
