Validation and benchmark reproduction

Introduction

The validation workflow on this page is grounded in inter-model benchmark comparisons and open-software reproductions (jech_etal_2015?; demer_validation_2003?; gastauer_zooscatrspan_2019?; sven_gastauer_svengastauerkrmr_2025?; betcke_bempp-cl_2021?).

Modeling packages become much more useful when users can distinguish a physically surprising result from a setup error. Validation pages help provide that context. In acousticTS, validation is not a single check with a single threshold. It is a layered workflow that begins with object and unit sanity, then moves to canonical benchmark reproduction, and finally asks whether the numerical behavior is stable enough that any remaining discrepancy deserves physical interpretation.

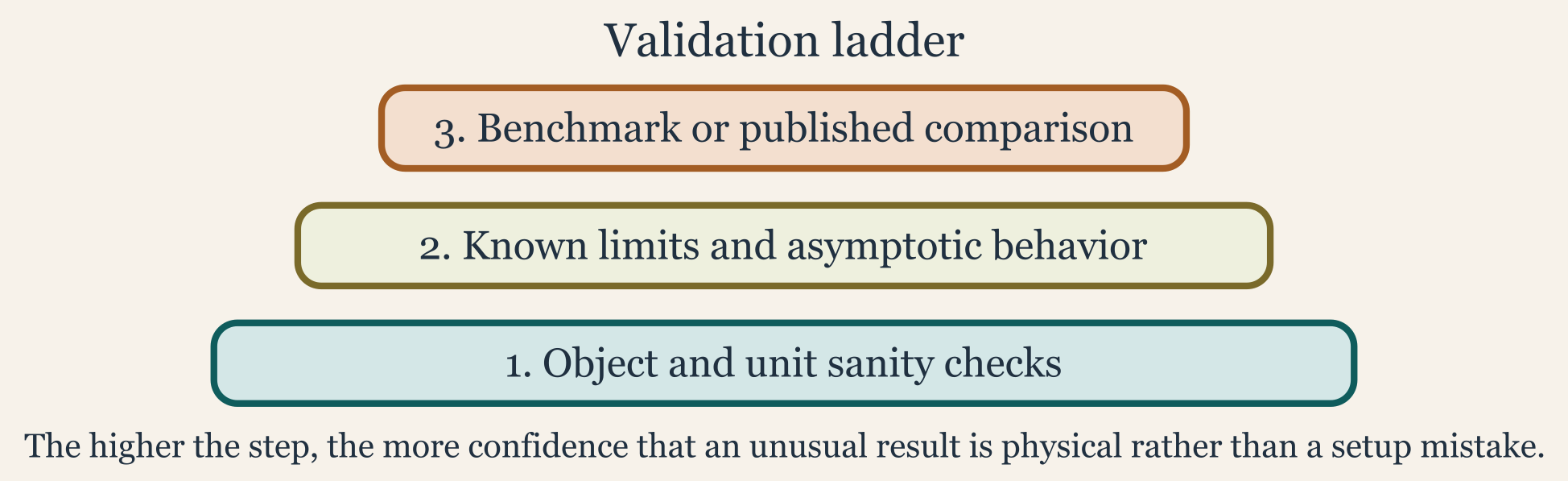

Validation ladder

That layered view matters because benchmark comparisons are only informative when the target definition, acoustic assumptions, numerical settings, and reporting scale are already aligned. A mismatch against a stored benchmark curve does not automatically diagnose a broken model. It may instead reflect a different boundary condition, a different frequency grid, a different medium, a different orientation convention, or a comparison being carried out in a quantity that is not the one the benchmark was intended to validate.

What the benchmark resources are for

The package includes benchmark_ts, which provides stored benchmark curves for several canonical model-and-geometry combinations. Together with the bundled example scatterers and the theory vignettes, it provides a documented basis for regression-style checks. That makes the dataset more than a teaching convenience. It is also part of the package’s broader numerical validation strategy.

library(acousticTS)

data(benchmark_ts)

names(benchmark_ts$frequency_spectra)

## [1] "index"            "sphere"           "prolate_spheroid" "cylinder"

head(benchmark_ts$frequency_spectra$index$frequency)

## [1] 12000 14000 16000 18000 20000 22000

The benchmark cases emphasize canonical exact or near-exact comparison problems: SPHMS sphere cases with several boundary conditions, FCMS finite-cylinder cases, and PSMS prolate-spheroid cases. That combination is useful because it spans several canonical geometries and several different numerical mechanisms. In practice, these resources let a user ask two related but different questions. The first is whether a known reference problem can be reproduced. The second is whether a new workflow still behaves consistently when anchored to a trusted canonical case.

Validation registry snapshot

The package also keeps a small internal validation registry so the family-page badges, model-library summaries, and validation evidence can be drawn from one source rather than maintained separately.

Family statuses

Family	Section	Status
SPHMS	Modal-series families	Benchmarked, Validated
FCMS	Modal-series families	Benchmarked, Validated
PSMS	Modal-series families	Benchmarked, Validated
SOEMS	Modal-series families	Benchmarked, Validated
ESSMS	Modal-series families	Unvalidated
BCMS	Modal-series families	Unvalidated, Experimental
ECMS	Modal-series families	Unvalidated, Experimental
DWBA	Approximation and ray-based families	Benchmarked, Validated
SDWBA	Approximation and ray-based families	Benchmarked, Validated
KRM	Approximation and ray-based families	Benchmarked, Validated
HPA	Approximation and ray-based families	Benchmarked, Validated
TRCM	Approximation and ray-based families	Benchmarked, Unvalidated
PCDWBA	Approximation and ray-based families	Validated, Experimental
BBFM	Composite and emerging families	Unvalidated, Experimental
VESM	Composite and emerging families	Validated, Experimental
TMM	Composite and emerging families	Benchmarked, Partially validated, Experimental

Benchmark evidence

Family	Evidence type	Source	Scope	Summary
SPHMS	Benchmarked	benchmark_ts / Jech et al. (2015)	Sphere spectra across rigid, soft, liquid-filled, and gas-filled cases.	Benchmarked against the canonical spherical spectra stored in `benchmark_ts`.
FCMS	Benchmarked	benchmark_ts / Jech et al. (2015)	Finite-cylinder spectra across the canonical cylindrical benchmark grid.	Benchmarked against the canonical finite-cylinder spectra stored in `benchmark_ts`.
PSMS	Benchmarked	benchmark_ts / Jech et al. (2015)	Prolate-spheroid spectra across the canonical benchmark grid.	Benchmarked against the canonical prolate-spheroid spectra stored in `benchmark_ts`.
SOEMS	Benchmarked	Published calibration spheres	Tungsten-carbide and copper calibration spheres.	Benchmarked against published calibration-sphere targets used throughout the package documentation.
DWBA	Benchmarked	Jech weakly scattering benchmark ladder	Weakly scattering sphere, prolate spheroid, and cylinder targets.	Benchmarked against the canonical weakly scattering targets summarized by Jech et al. (2015).
SDWBA	Benchmarked	Published SDWBA weak-scattering ladder	Weakly scattering sphere, prolate spheroid, and cylinder stochastic targets.	Benchmarked against published SDWBA weak-scattering comparison cases.
KRM	Benchmarked	Canonical modal families	Canonical isolated targets used for the package KRM benchmark ladder.	Benchmarked against canonical modal-family targets used for isolated gas-filled and weakly scattering cases.
HPA	Benchmarked	Jech canonical asymptotic targets	Sphere, prolate spheroid, and cylinder asymptotic benchmark targets.	Benchmarked against canonical asymptotic target families rather than as an exact modal solver.
TRCM	Benchmarked	Package validation workflow	Straight and bent cylindrical validation cases documented in the package.	Benchmarked within the package validation workflow against the straight-cylinder and FCMS-derived bent-cylinder reference constructions.
TMM	Benchmarked	SPHMS / PSMS / FCMS benchmark ladder	Sphere, oblate, prolate, and guarded cylinder monostatic branches.	Benchmarked against `SPHMS`, `PSMS`, and `FCMS` on the currently supported canonical shape branches.

Validated-comparison evidence

Family	Evidence type	Source	Scope	Summary
SPHMS	Validated	KRMr and echoSMs	Penetrable sphere spectra on shared software definitions.	Validated against `KRMr` and `echoSMs` on shared penetrable-sphere cases.
FCMS	Validated	echoSMs	Rigid, soft, liquid-filled, and gas-filled finite-cylinder spectra.	Validated against the `echoSMs` finite-cylinder implementation.
PSMS	Validated	Prol_Spheroid	Liquid-filled and gas-filled prolate-spheroid software comparisons.	Validated against the external `Prol_Spheroid` implementation on shared prolate cases.
SOEMS	Validated	echoSMs, sphereTS, NOAA applet	Shared calibration-sphere material sets and frequency sweeps.	Validated against `echoSMs`, `sphereTS`, and the NOAA calibration applet.
DWBA	Validated	Published and independent DWBA implementations	Bundled krill geometry and published DWBA reference workflows.	Validated against the published McGehee MATLAB workflow and an independent DWBA implementation.
SDWBA	Validated	CCAMLR MATLAB and NOAA HTML implementations	Bundled krill stochastic workflow comparisons.	Validated against the CCAMLR MATLAB and NOAA HTML SDWBA implementations.
KRM	Validated	KRMr, echoSMs, NOAA applet	Bundled sardine and cod software-to-software comparisons.	Validated against `KRMr`, `echoSMs`, and the NOAA KRM applet on bundled fish objects and shared workflows.
HPA	Validated	echoSMs HPModel and published algebra	Spherical HPModel branch and published asymptotic formulas.	Validated against the spherical `echoSMs::HPModel` branch and the published Johnson/Stanton algebra.
PCDWBA	Validated	ZooScatR and echopop source workflows	Curved weak-scattering reference workflows on shared bent-body cases.	Validated against source-level `ZooScatR` and `echopop` PCDWBA workflows.
VESM	Validated	Reference Python VESM workflow	Documented spherical layered case used by the original VESM implementation.	Validated against the reference Python VESM implementation on the documented layered-sphere case.
TMM	Validated	BEMPP far-field checks	Pressure-release angular slices for sphere, oblate, and prolate cases.	Validated against external BEMPP far-field checks for sphere, oblate, and prolate pressure-release cases.
TMM	Validated	Exact general-angle spheroidal solution	General-angle prolate retained-state validation.	Retained prolate angular products are also checked against the exact general-angle spheroidal solution.

Partially-validated scope evidence

Family	Evidence type	Source	Scope	Summary
TMM	Partially validated	Cylinder retained-angle scope	Cylinder retained-angle scope limitation and guardrails.	TMM is partially validated because the sphere, oblate, and prolate branches have external checks, but retained general-angle cylinder products remain outside the validated public scope.

Experimental-scope evidence

Family	Evidence type	Source	Scope	Summary
BCMS	Experimental	Internal FCMS-based reference reconstruction	Uniform-curvature cylinder coherence extension of FCMS.	BCMS is currently marked experimental because the documented checks are internal coherence reconstructions rather than an external benchmark or software-comparison ladder.
ECMS	Experimental	Independent algebra transcription	Elastic-cylinder component family and near-broadside canonical cases.	ECMS is currently marked experimental because the documented checks are independent algebra reconstructions rather than an external benchmark or software-comparison ladder.
PCDWBA	Experimental	Current package workflow surface	Current package-facing PCDWBA workflow and argument surface.	PCDWBA is currently marked experimental because the public package workflow is still being tightened even though the current source- level comparison cases are documented.
BBFM	Experimental	Internal DWBA + ECMS reconstruction	Internal composite-component consistency checks only.	BBFM is currently marked experimental because it has documented internal reconstruction checks but no external benchmark ladder or independent public implementation comparison.
VESM	Experimental	Current layered-sphere workflow surface	Current documented layered-sphere workflow surface.	VESM is currently marked experimental because the documented public workflow is still limited to the current layered-sphere scope.
TMM	Experimental	Current retained-state branch matrix	Current retained-state branch matrix across supported shapes.	TMM is currently marked experimental because the retained-state workflow and branch matrix are still guarded while shape-specific support continues to be tightened.

What validation means in this package

Validation in acousticTS is best understood as at least four related layers of evidence.

First, the object and setup have to be internally consistent. The geometry must be the one the user thinks was created, the material properties must be in the correct units, the model must be appropriate for the target class and boundary interpretation, and the frequency grid and orientation convention must match the intended analysis. If any of that is wrong, benchmark disagreement says very little.

Second, the workflow should reproduce known theoretical or canonical limits whenever those are available. For some models that means checking against an exact modal-series benchmark. For others it means checking whether the limiting behavior is consistent with the approximation regime documented in the theory page.

Third, the numerical solution has to be stable enough that the reported agreement is meaningful. Some comparisons are only trustworthy after truncation settings, precision choices, quadrature controls, or object resolution have been perturbed and found not to change the result materially.

Fourth, the reporting quantity has to match the comparison question. A benchmark assessed in TS is not necessarily saying the same thing as a benchmark assessed in sigma_bs, and neither is equivalent to direct comparison of the complex scattering amplitude.

Layer 1: geometry and setup checks

The first layer of validation is simple but essential. Confirm the shape is what you think it is, confirm that the material properties and units are sensible, confirm that the selected model is compatible with the target class and boundary interpretation, and confirm that the frequency grid and orientation convention match the intended benchmark. This layer is often enough to explain large discrepancies. Many apparent model failures are actually mismatches in units, contrasts, orientation, or boundary-condition naming.

This is also the stage where readers should decide whether a benchmark is even comparable to the problem they are running. A rigid-sphere benchmark is not a useful reference for a fluid-filled sphere setup, and a benchmark built in seawater is not a direct check on a target rebuilt with different ambient properties unless the comparison has been intentionally nondimensionalized.

Layer 2: benchmark reproduction

The second layer is to reproduce a known benchmark curve or stored regression case. The bundled resources and the package tests provide the clearest examples of this workflow. For spheres, one can build the canonical sphere case, run SPHMS, and compare the resulting TS vector against the stored benchmark curve.

data(benchmark_ts)

frequency <- benchmark_ts$frequency_spectra$index$frequency
density_sw <- 1026.8
sound_speed_sw <- 1477.3

scatterer_ess <- fixture_sphere("fixed_rigid")

scatterer_ess <- target_strength(
  scatterer_ess,
  frequency = frequency,
  model = "sphms",
  boundary = "fixed_rigid",
  density_sw = density_sw,
  sound_speed_sw = sound_speed_sw
)

all.equal(
  extract(scatterer_ess, "model")$SPHMS$TS,
  benchmark_ts$frequency_spectra$sphere$fixed_rigid,
  tolerance = 1e-2
)

The cylinder and prolate-spheroid benchmark workflows follow the same broad pattern with FCMS and PSMS, respectively. For the prolate-spheroid case, the benchmark setup also shows something important: faithful reproduction can require model-specific numerical settings such as precision = "quad" or simplify_Amn = FALSE. In other words, a model may be mathematically correct and still miss a benchmark if the numerical configuration is not the one the comparison requires.

Layer 3: choosing the comparison quantity

Benchmark agreement should be interpreted in the quantity that answers the validation question. When the goal is to reproduce the exact reported target-strength curve from a publication or stored package resource, comparison in TS is often appropriate because the benchmark itself is already expressed in decibels. In that setting, absolute dB differences are directly interpretable and are often the most convenient regression metric.

When the goal is to assess scattering strength as a physical quantity, or when the benchmark is really about backscattering magnitude rather than reported target strength, comparison in the linear domain is usually more informative. That means working with sigma_bs or, when phase matters, with f_bs. Two solutions that differ modestly in TS can represent a much larger relative disagreement in sigma_bs at low-scattering portions of the curve. The converse can also happen: a visually noticeable dB mismatch near a strong peak may correspond to a smaller relative linear-domain error than a reader expects.

For that reason, validation metrics such as MAD, RMSE, or maximum absolute error should be interpreted together with the domain in which they were computed. A dB-domain RMSE rewards agreement in the reported target-strength scale. A linear-domain RMSE rewards agreement in physical scattering magnitude. Neither dominates the other universally. The right choice depends on whether the benchmark is being used as a reporting check, a physical-strength check, or a numerical-regression check.

Layer 4: numerical stability checks

Benchmark reproduction is necessary, but it is not the whole story. Some workflows also need local numerical checks such as increasing object resolution, changing truncation or integration controls, checking sensitivity to precision settings, and confirming that oscillatory structure is physically consistent rather than an artifact. This is especially relevant for models with heavier numerical machinery, such as PSMS or boundary-value problems involving multiple coupled coefficients.

A benchmark should therefore be thought of as an anchor, not as a substitute for local numerical inspection. If a curve agrees with a benchmark only at one specific precision or one specific truncation setting but changes materially under modest perturbation, the agreement should be treated cautiously. Conversely, a small residual mismatch may be acceptable when the solution is numerically stable and the comparison is known to involve different interpolation, reporting, or precision conventions.

How to use the bundled benchmarks well

The bundled benchmark dataset is most useful when it is treated as a regression reference rather than just a plotting convenience. Good uses include checking a local modification to a model implementation, confirming that a custom object-construction workflow reproduces a known canonical case, verifying that changes in numerical options do not materially alter a trusted solution, and teaching the difference between a setup error and a model limitation.

Less useful uses include comparing a benchmark curve to a target built with different physical assumptions and then interpreting the mismatch as a numerical problem. A benchmark is only informative when the target definition and the acoustic assumptions are genuinely aligned. Before treating disagreement as evidence of model failure, it is worth confirming that the benchmark and the reproduced case actually describe the same geometry, medium, boundary condition, orientation convention, and reported quantity.

A practical validation ladder

For routine work, a conservative sequence is usually best.

Plot the geometry and confirm that the object matches the intended canonical case.
Inspect the material properties, units, boundary interpretation, and medium parameters.
Run one deterministic model call and inspect the extracted outputs in the quantity the benchmark actually reports.
Compare against a canonical or benchmark case when one is available.
Vary one numerical control at a time if the result still looks suspicious.
Only after those checks, decide whether any remaining disagreement is physical, numerical, or simply a difference in reporting scale.

That ladder avoids blaming the mathematics before checking the setup, and it avoids over-interpreting benchmark mismatches that are really mismatches of assumptions.
