Scattering and pressure in a coated particle

Compare a fluid core with and without a fluid coating, then inspect the pressure through both layers. Keep the core radius and material fixed so the comparison isolates the addition of the coating. All material ratios below are illustrative.

Add a coating

using AcousticScattering
using CairoMakie: Figure, Axis, lines!, axislegend, vlines!, save

radius, ratio = 0.01, 0.75
sound_speed = 1500.0
core = FluidFilled(0.8, 0.9)
coating = Shelled(FluidLayer(1.4, 1.2), FluidInterior(0.8, 0.9), ratio)
frequencies = range(10000.0, 120000.0; length=161)
bare = frequency_sweep(k -> modal(Sphere(ratio*radius), core, k), frequencies, sound_speed)
coated = frequency_sweep(k -> modal(Sphere(radius), coating, k), frequencies, sound_speed)

figure = Figure(; size=(760, 440))
axis = Axis(figure[1, 1]; xlabel="Frequency (kHz)",
    ylabel="Target strength (dB re 1 m²)", title="A 7.5 mm core with a 2.5 mm fluid coating")
lines!(axis, frequencies ./ 1000, bare.target_strength; label="Bare core", color=:navy)
lines!(axis, frequencies ./ 1000, coated.target_strength; label="Coated core", color=:darkorange)
axislegend(axis; position=:rb)
save("coated_spectrum.png", figure)

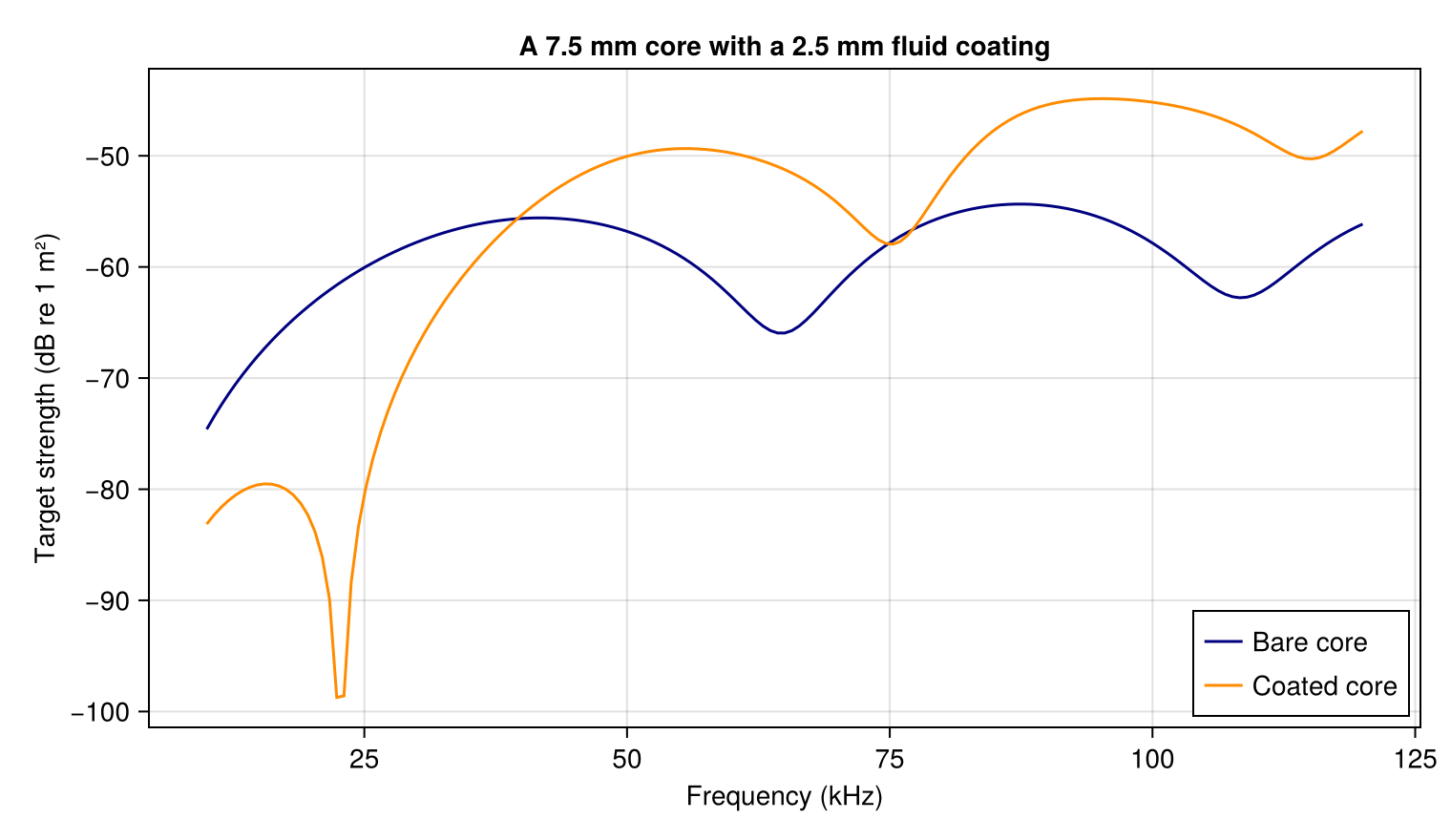

Backscatter from a fixed fluid core before and after adding a fluid coating.

ratio is inner radius divided by outer radius. The layer and interior each take density and sound-speed ratios relative to the exterior fluid.

Look through the particle

solution = modal(Sphere(radius), coating, 2pi * 38000 / sound_speed; m_max=24)
x = range(-2radius, 2radius; length=401)
values = pressure(solution, [(position, 0.0, 0.0) for position in x])

field_figure = Figure(; size=(760, 440))
field_axis = Axis(field_figure[1, 1]; xlabel="x (mm)",
    ylabel="Pressure magnitude / incident amplitude", title="Axial pressure at 38 kHz")
lines!(field_axis, 1000 .* x, abs.(values); color=:navy)
vlines!(field_axis, 1000radius .* [-1, -ratio, ratio, 1]; color=:gray, linestyle=:dash)
save("coated_pressure.png", field_figure)

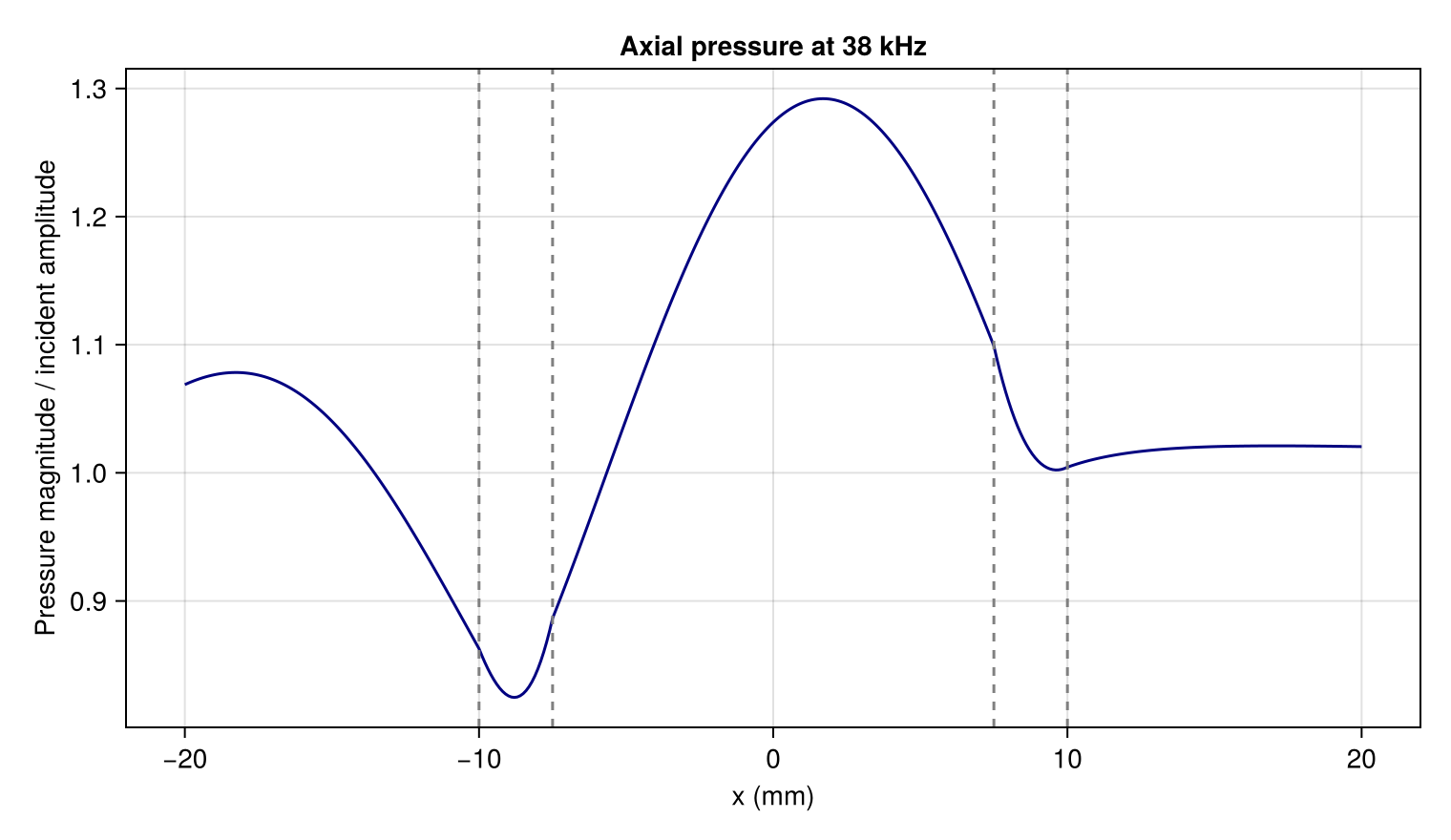

Normalized total pressure through the core, coating and surrounding fluid.

The incident wave travels along +x. Dashed lines mark the interfaces. pressure automatically selects the exterior, coating or core. This is total pressure, so the exterior includes interference between the incident and scattered waves.

Check pressure continuity directly at the inner surface:

point = (ratio*radius, 0.0, 0.0)
inside = pressure(solution, point; field=:interior)
shell = pressure(solution, point; field=:shell)
@assert isapprox(inside, shell; rtol=1e-8)
(core_trace=inside, coating_trace=shell)

(core_trace = 0.5924771616680685 + 0.9257552864200073im, coating_trace = 0.5924771616680694 + 0.9257552864200072im)

Increase m_max when resolving higher frequencies. See Pressure at Cartesian points for field selection and units.
