Visualization Gallery
Explore geometry, materials, coupled bodies, pressure fields and scattering patterns. Click any figure to enlarge it, or open its short, runnable Julia example.
For a visual catalog of body constructors and supported geometry families, see the Geometries page.
See inside a coupled body

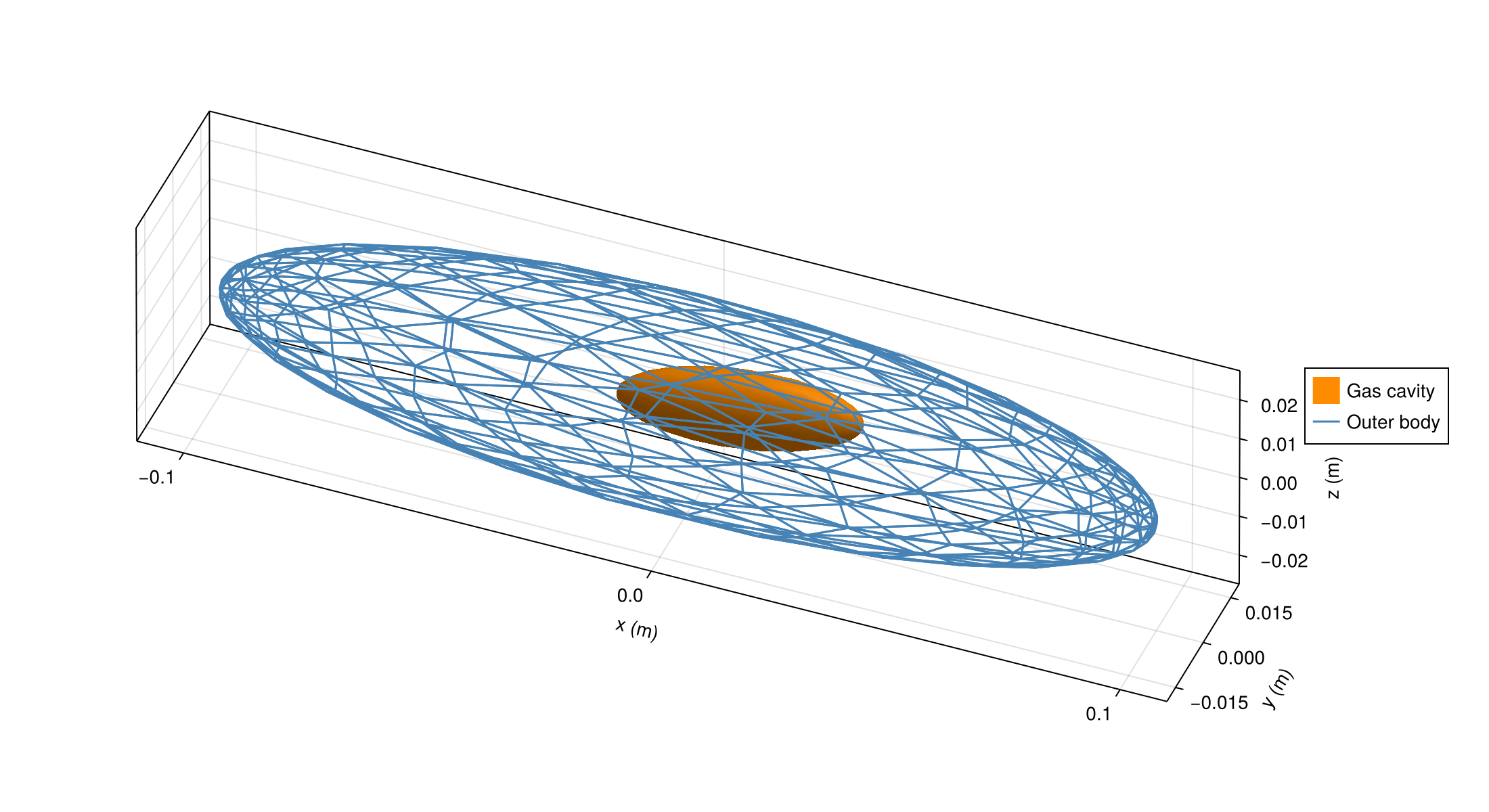

The enclosing wireframe is drawn over, and visibly around, the internal cavity.
Pressure on the outer body

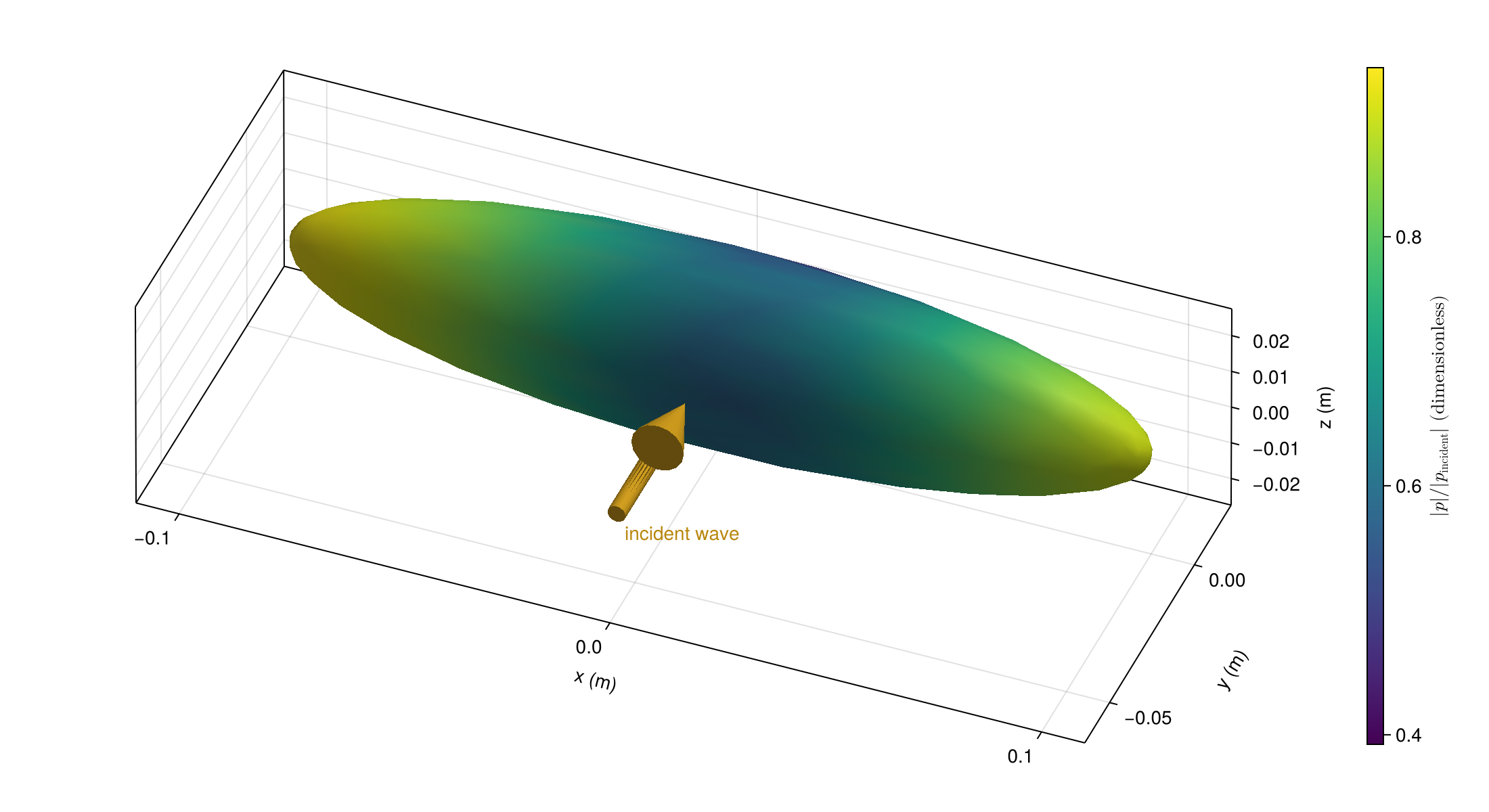

The coupled total-pressure trace is shown on the complete outer interface.
Multiple scattering

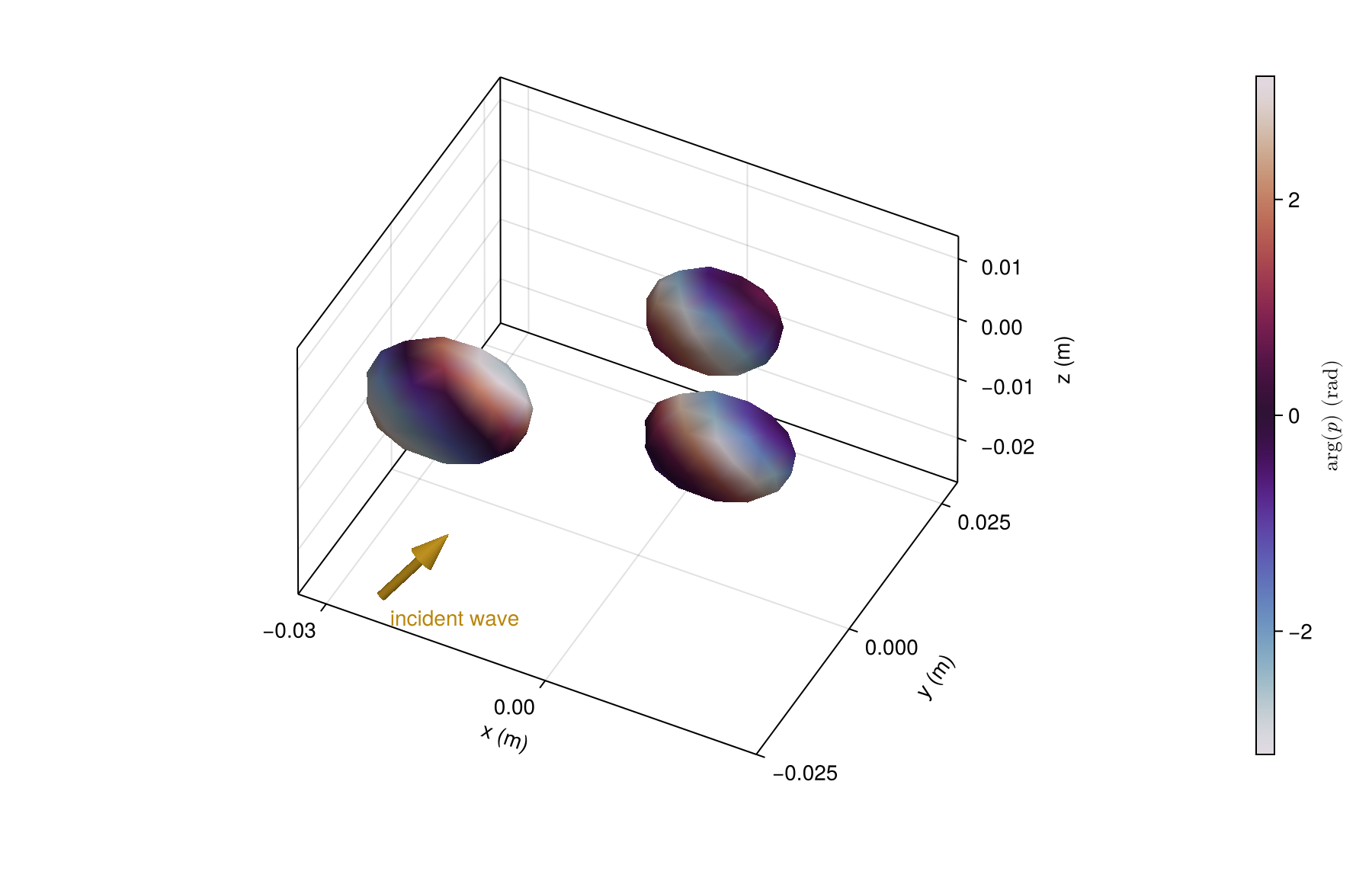

Pressure phase across three interacting particles under oblique incidence.
Bring your own mesh
Load a custom Gmsh surface, solve it, and inspect the supplied facets.
Two internal gas cavities
A cutaway exposes two cavities with distinct coupled responses.
Nested fluid regions
Inspect an offset core through two complete enclosing interfaces.
An off-center inclusion
A cutaway shows transmission through a displaced, rotated inclusion.
Pressure fields in 3D

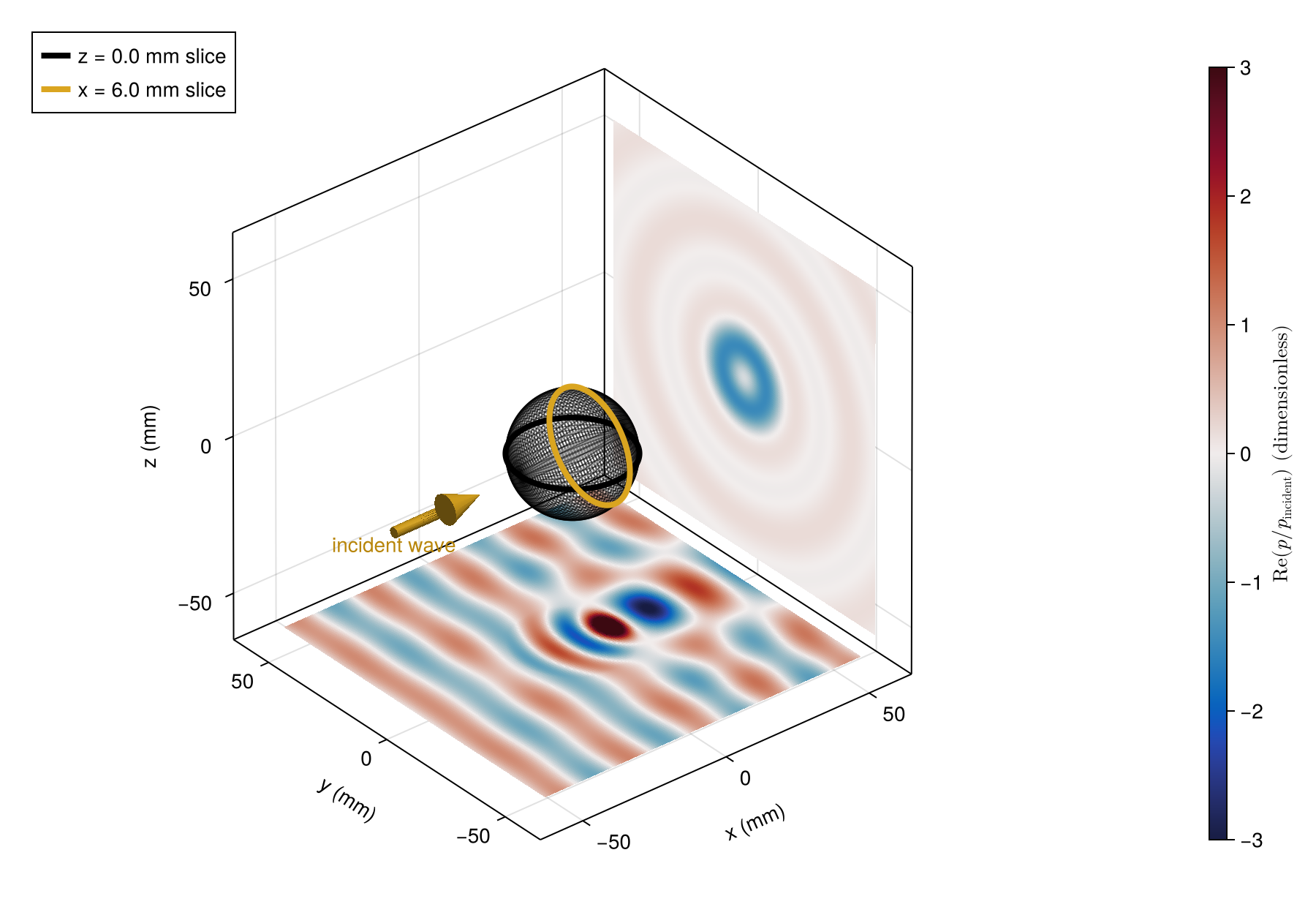

Projected slices leave the sphere clear and mark their sampled planes.
Phase on a curved body

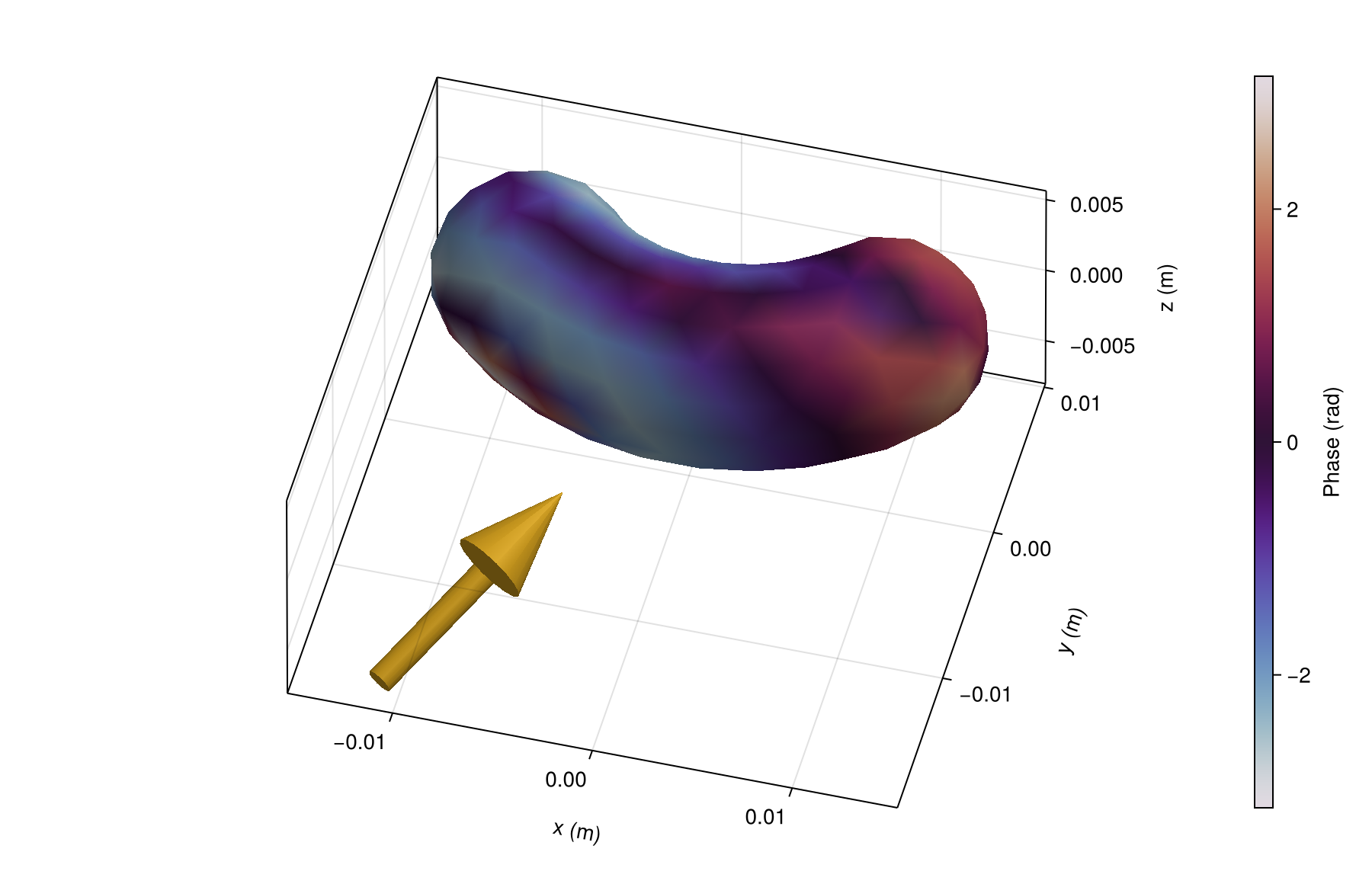

A closed bent surface, colored by scattered-pressure phase.
Closed fluid cylinders
Surface pressure at oblique incidence, including rounded ends.
3D scattering lobes
The target, incident direction and backscatter direction anchor the normalized 3D response.
Every observation direction

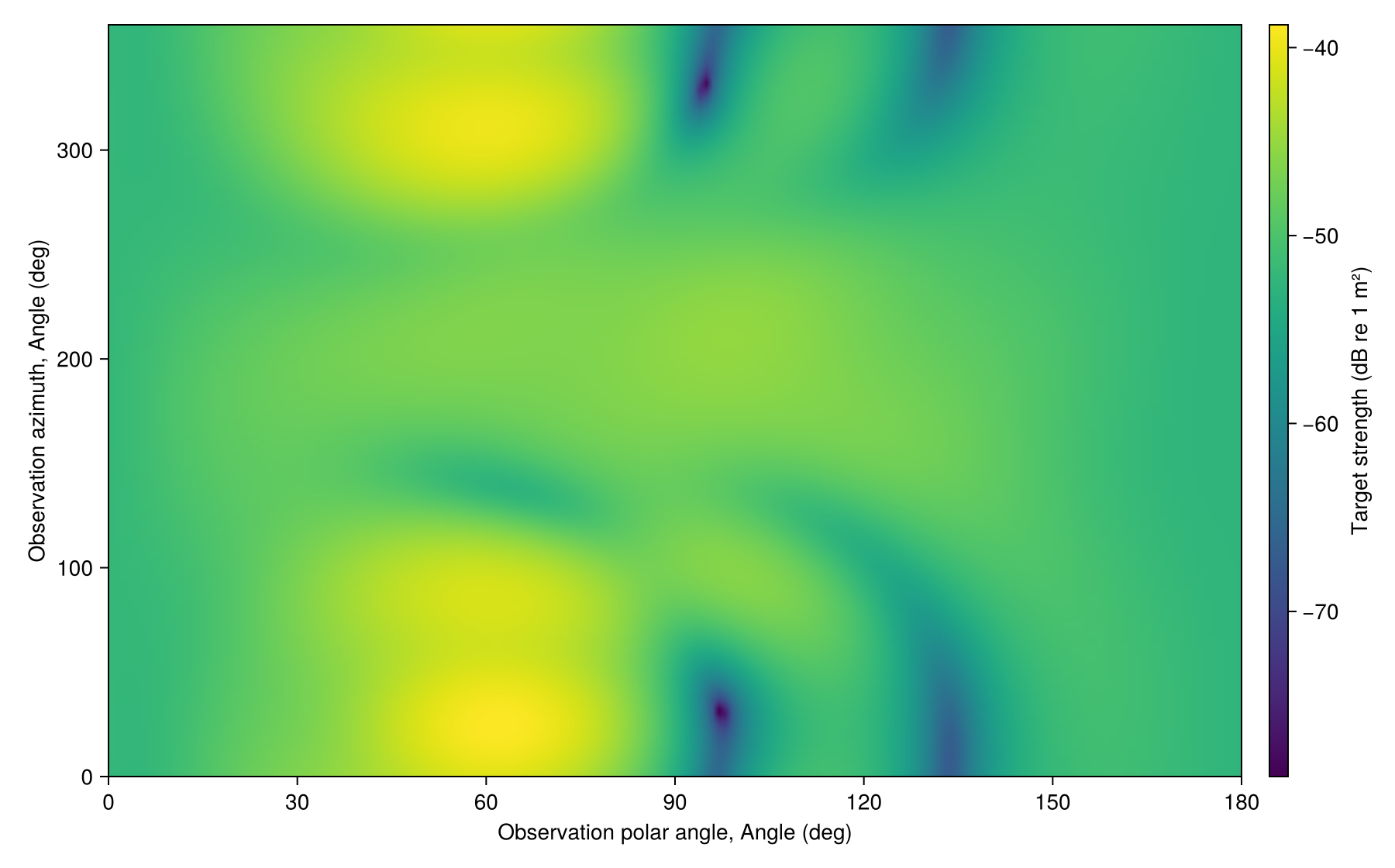

A single solution becomes a complete angular scattering map.
Inside and around a particle

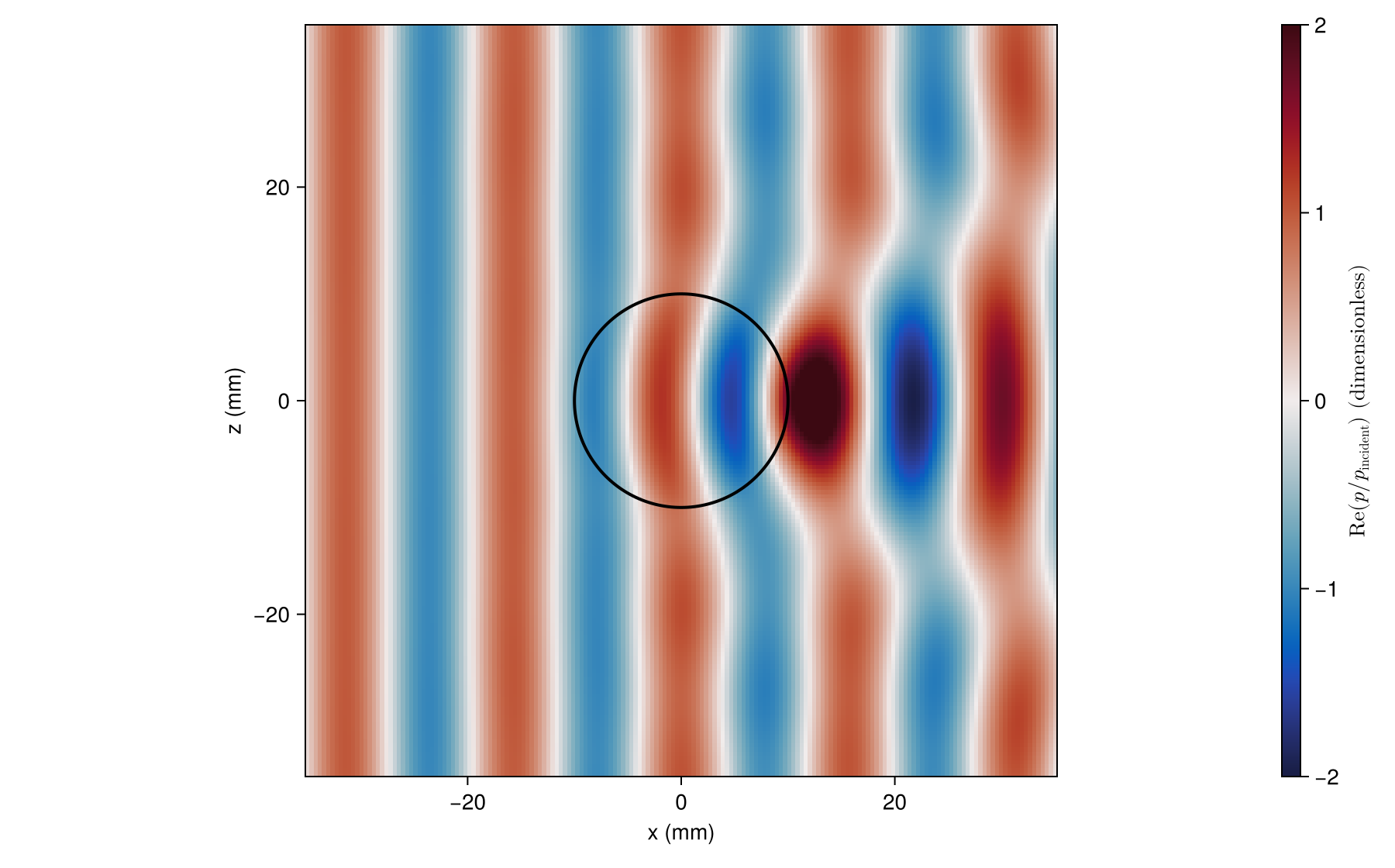

See transmitted waves and exterior interference in one slice.
Bubble resonance

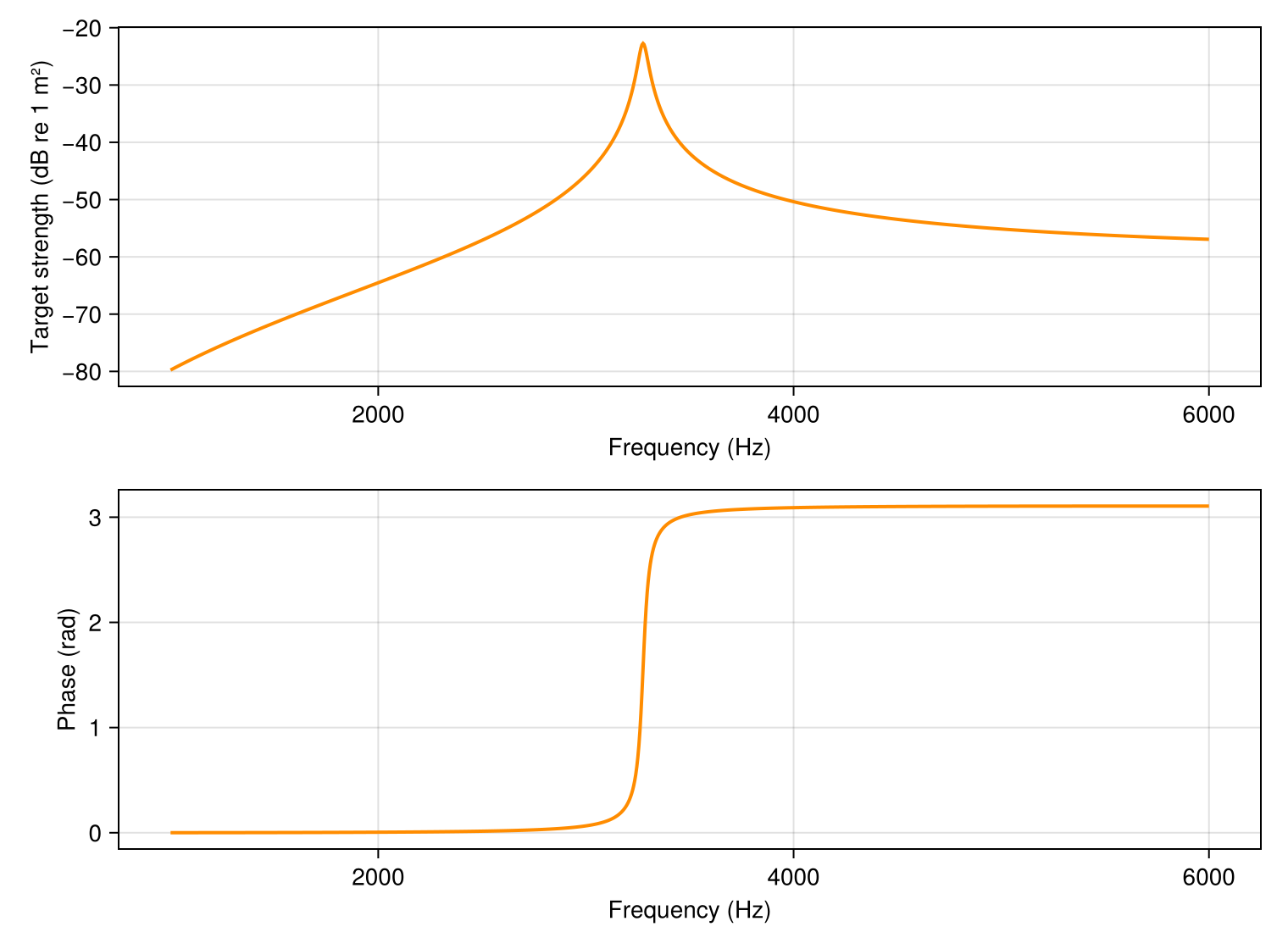

Track a gas bubble's resonance in target strength and phase.
Add a coating

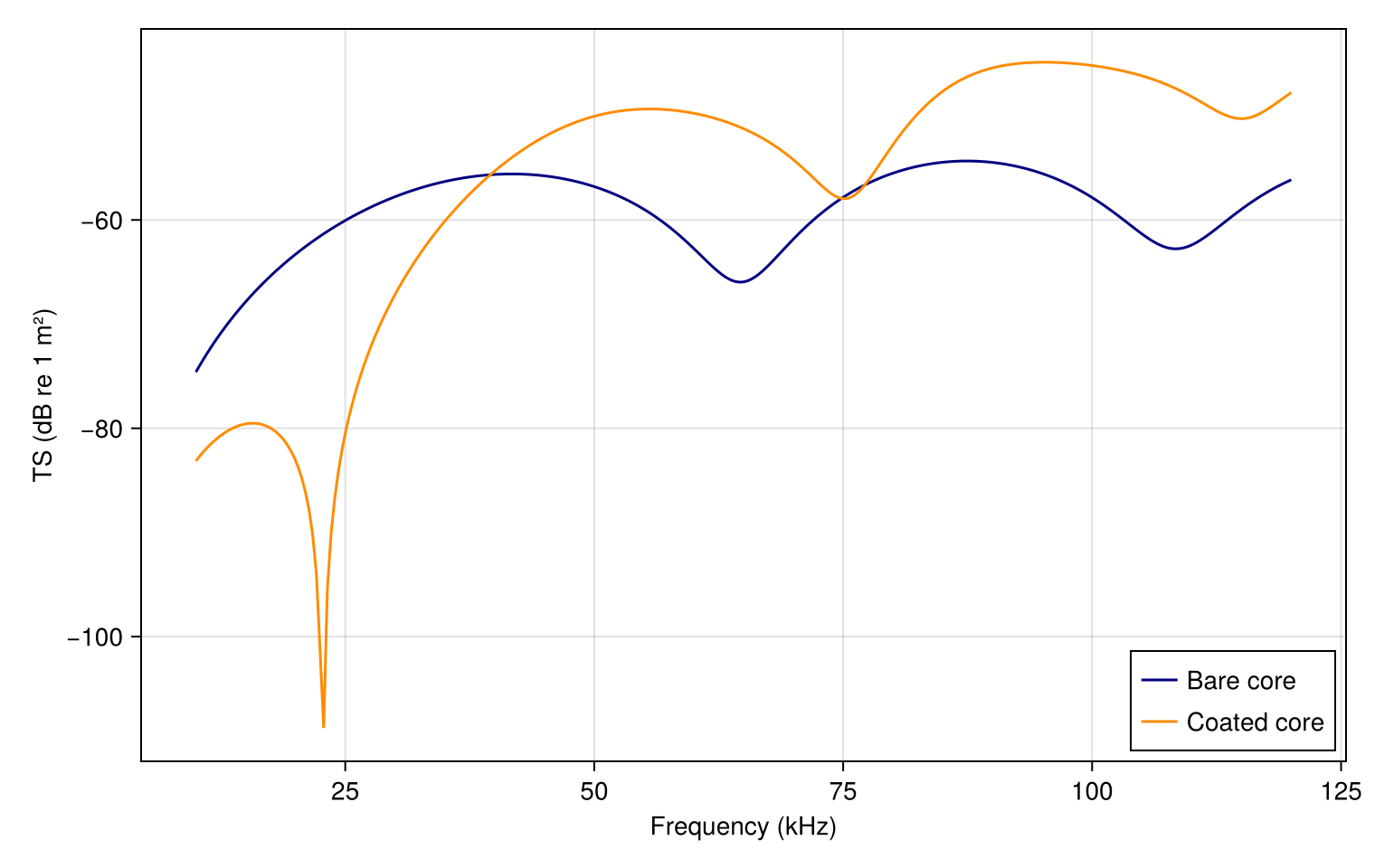

Keep the core fixed and explore what its surrounding layer changes.
Elastic resonances

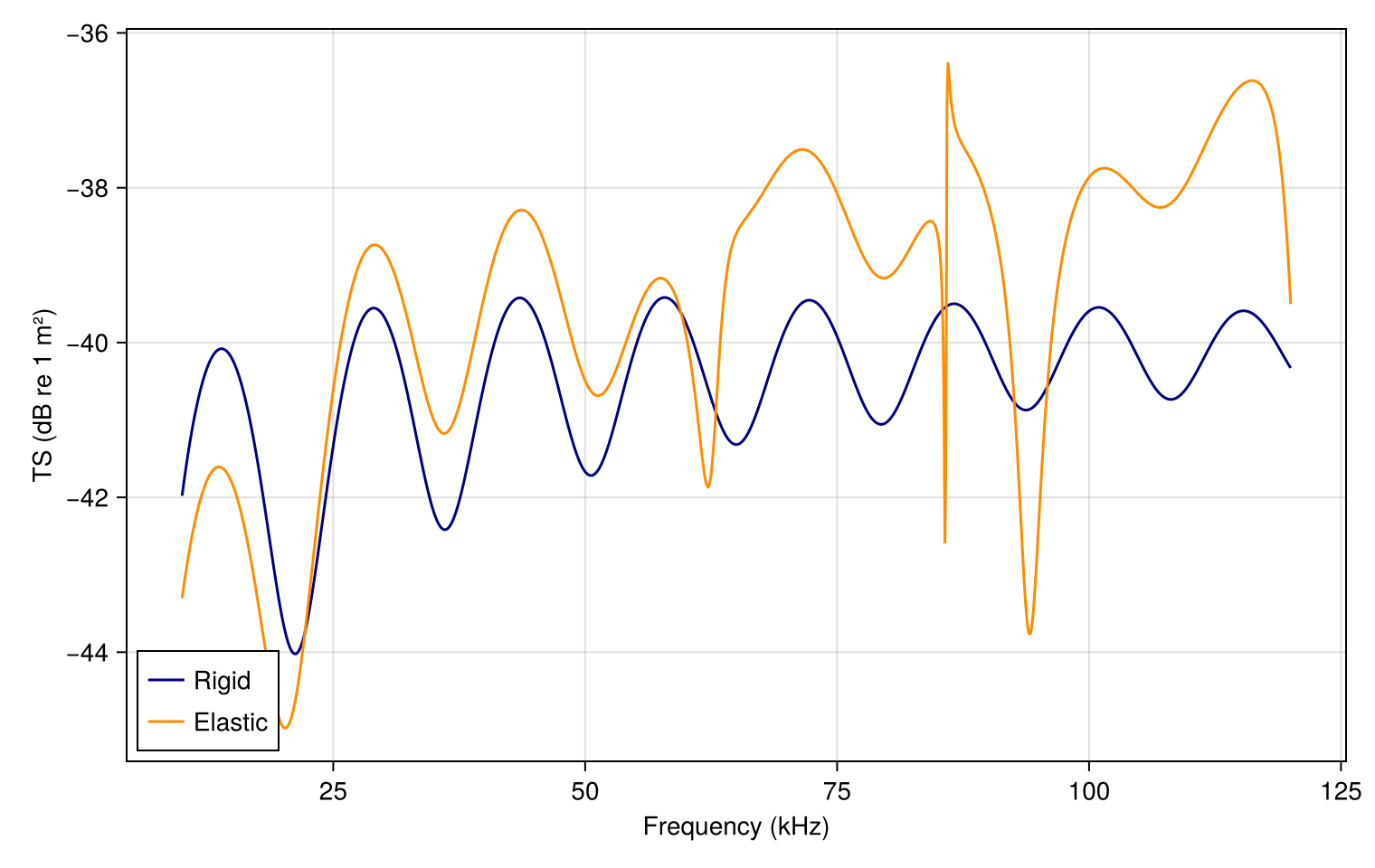

Rigid and elastic spheres reveal very different spectra.
